Vector Geoprocessing

So far, we’ve looked at different types of data, how geospatial data can be stored as vector coordinates with attributes, making sure we use a relevant coordinate reference system; and the file types used to store data in this format.

This brings us to a point where we can start doing geoprocessing, or analysis, of real geospatial data.

Of course, in order to actually work on real geospatial data, we need to know where to get some! So let’s start by looking at some sources of vector geospatial data.

1. Sources of Vector Geospatial Data

There is no way we could list all sources here - there’s just far, far too many. But I think it’s worth mentioning a few here, in part to demonstrate the widespread availability of geospatial data, and just in case you want to play with any of them.

A lot of the geospatial data for Ireland is available from a single source:

• data.gov.ie and GeoHive

  The Irish Government’s Open Data portal currently lists 18,439 open datasets from 146 publishers, covering almost all areas of Government. Topics relevant to the environment include Agriculture, Fisheries, Forestry, & Food; Energy; Environment; Health; Housing and Zoning; Population and Society; Regions and Cities; and Transport. Data can also be viewed and downloaded through the GeoHive online mapviewer.

• data.europa.eu

  The European Union’s official data portal also facilitates access to the data from the data.gov.ie portal, as well as data for other European countries and multinational data.

There are some datasets not available through these portals, or more easily available from other sources:

• CSO Census 2022 Small Area Population Statistics

  The census of population is taken every 5 years normally - with the pandemic delaying the most recent version slightly. The data is available from the Central Statistics Office at a range of geospatial data levels - including province, administrative county, Local Electoral Areas, Electoral Divisions, and Small Areas. Data and maps are provided separately, and must be combined to use as geospatial data.

• Environmental Protection Agency (EPA): data downloads and web mapping services

  The EPA is responsible for most environmental monitoring and management, including compliance with EU directives such as the Water Framework Directive, air quality monitoring, noise monitoring, and radiological protection.

• Met Éireann

  Met Éireann publishes current and historic data from weather stations around the country.

• OPW: waterlevel.ie

  The Office of Public Works (OPW) has responsibility for flood risk management, and monitors water levels for rivers throughout the country. This one, we’re going to be using in this module.

Some data is best available from non-government sources. In particular, Tailte Éireann - formerly the Ordnance Survey Ireland - is responsible for mapping, but the high resolution data is only available at cost. Of course you can look at detailed mapping from other sources like Google Maps - but similarly, you can’t download individual feature sets like the roads, or the buildings, from Google Maps - you can only look at the overall map. There is one incomplete, but useful, source of this data, however.

• OpenStreetMap openstreetmap.org; download from geofabrik.de

  If you’re not familiar with OpenStreetMap, you can think of it as being the open source version of Google Maps. With OpenStreetMap, anyone can contribute data - and anyone can download and use the data.

2. Joining Vector and Attribute Data

Sometimes, you’ll have one file containing the geometry of particular features, and a second file containing attribute data for those features. Can you use them together?

Yes, easily.

Let’s demonstrate using data from the most recent Census of Population in Ireland. The most detailed data from this is published at small area level. Small areas are defined to be comparable in size and population, with each typically having 50-200 dwellings, and ideally comprising complete townlands or neighbourhoods.

The data at small areas level is published by the CSO, separately from the map of the small areas. However, the data does contain references indicating which small area each row of data is for. We can use this to join the data to the map. Let’s start by reading in the map of the small areas. We can do this directly from the Government’s Open Data portal:

import pandas as pd
import geopandas as gpd

# this will take a few minutes to load - be patient

small_areas = gpd.read_file('https://opendata.arcgis.com/api/v3/datasets/70a33cbb8bd7406da0d571be28624721_0/downloads/data?format=geojson&spatialRefId=4326&where=1%3D1')

small_areas.head()

	OBJECTID	SA_GUID_2016	SA_GUID_2022	SA_PUB2011	SA_PUB2016	SA_PUB2022	SA_GEOGID_2022	SA_CHANGE_CODE	SA_URBAN_AREA_FLAG	SA_URBAN_AREA_NAME	...	ED_GAEILGE	ED_ID_STR	ED_PART_COUNT	COUNTY_CODE	COUNTY_ENGLISH	COUNTY_GAEILGE	CSO_LEA	SHAPE_Length	SHAPE_Area	geometry
0	1	4c07d11e-0a4f-851d-e053-ca3ca8c0ca7f	4c07d11e-0a4f-851d-e053-ca3ca8c0ca7f	017010016	017010016	017010016	A017010016	0	1	Carlow	...	CEATHARLACH (TUATH)	017010	1	01	CARLOW	Ceatharlach	CARLOW	0.023915	0.000027	MULTIPOLYGON (((-6.91417 52.84479, -6.91425 52...
1	2	4c07d11e-0a3a-851d-e053-ca3ca8c0ca7f	4c07d11e-0a3a-851d-e053-ca3ca8c0ca7f	017010046	017010046	017010046	A017010046	4	1	Carlow	...	CEATHARLACH (TUATH)	017010	1	01	CARLOW	Ceatharlach	CARLOW	0.033138	0.000038	MULTIPOLYGON (((-6.90269 52.82338, -6.90289 52...
2	3	4c07d11e-0a4e-851d-e053-ca3ca8c0ca7f	4c07d11e-0a4e-851d-e053-ca3ca8c0ca7f	017010037	017010037	017010037	A017010037	0	1	Carlow	...	CEATHARLACH (TUATH)	017010	1	01	CARLOW	Ceatharlach	CARLOW	0.031117	0.000028	MULTIPOLYGON (((-6.90585 52.83666, -6.90584 52...
3	4	4c07d11e-0a25-851d-e053-ca3ca8c0ca7f	4c07d11e-0a25-851d-e053-ca3ca8c0ca7f	017010005	017010005	017010005	A017010005	0	1	Carlow	...	CEATHARLACH (TUATH)	017010	1	01	CARLOW	Ceatharlach	CARLOW	0.033269	0.000047	MULTIPOLYGON (((-6.93275 52.82749, -6.93283 52...
4	5	4c07d11e-0a57-851d-e053-ca3ca8c0ca7f	4c07d11e-0a57-851d-e053-ca3ca8c0ca7f	017010036	017010036	017010036	A017010036	0	1	Carlow	...	CEATHARLACH (TUATH)	017010	1	01	CARLOW	Ceatharlach	CARLOW	0.032480	0.000057	MULTIPOLYGON (((-6.90583 52.84255, -6.90616 52...

5 rows × 29 columns

This is a relatively big dataset, and will take a little time to download, so don’t panic if it doesn’t run quickly. We’re downloading it in GeoJSON format, even though it’s also available as a smaller shapefile, because some of the column names are more than 10 characters long, and cutting them off at 10 characters - as the shapefile format does - will leave some columns where we don’t know which is which. Most importantly, some small areas were redefined between 2016 and 2022, and so there’s columns with the IDs for both years; SA_GUID_2016 and SA_GUID_2022 truncated to 10 characters are both SA_GUID_20. Really not the two columns you want to be confusing.

And now let’s get the census data tables at Small Areas level from the CSO:

# again this will take a little time to load - be patient
small_areas_data = pd.read_csv('https://www.cso.ie/en/media/csoie/census/census2022/SAPS_2022_Small_Area_270923.csv')
small_areas_data.head()

	GUID	GEOGID	GEOGDESC	T1_1AGE0M	T1_1AGE1M	T1_1AGE2M	T1_1AGE3M	T1_1AGE4M	T1_1AGE5M	T1_1AGE6M	...	T15_1_2C	T15_1_3C	T15_1_GE4C	T15_1_NSC	T15_1_TC	T15_2_BB	T15_2_OIC	T15_2_NO	T15_2_NS	T15_2_T
0	IE0	Ireland	Ireland	29610	28875	30236	31001	31686	32684	34092	...	594716	121594	46658	131326	1836728	1457883	73165	159866	145814	1836728
1	00b00ae4-229d-455d-84f1-d6face4876b1	147002002/02	147002002/02	2	6	3	2	6	5	4	...	20	3	1	20	116	88	4	4	20	116
2	03003797-1fcd-4fcf-8dde-b2188e3fb1db	167070005/01/167070001	167070005/01/167070001	1	3	2	1	1	3	1	...	43	16	4	7	119	93	1	17	8	119
3	06650182-eeaa-4c6c-847c-f85ddaf5361b	087064009/03	087064009/03	4	1	2	3	1	2	1	...	59	9	2	6	114	106	2	1	5	114
4	08e82f06-46ee-4141-aa07-79a793a12b27	087001012/02	087001012/02	1	1	0	2	1	0	1	...	26	3	0	2	86	80	1	3	2	86

5 rows × 793 columns

Now, we can see that in the small areas maps, the column with the ID for each area is SA_GUID_2022, whereas in the data tables, it’s just GUID. We would prefer these to be the same name, so we can easily link them, so let’s rename the column in the data tables:

small_areas_data = small_areas_data.rename(columns = {'GUID':'SA_GUID_2022'})
small_areas_data.head()

	SA_GUID_2022	GEOGID	GEOGDESC	T1_1AGE0M	T1_1AGE1M	T1_1AGE2M	T1_1AGE3M	T1_1AGE4M	T1_1AGE5M	T1_1AGE6M	...	T15_1_2C	T15_1_3C	T15_1_GE4C	T15_1_NSC	T15_1_TC	T15_2_BB	T15_2_OIC	T15_2_NO	T15_2_NS	T15_2_T
0	IE0	Ireland	Ireland	29610	28875	30236	31001	31686	32684	34092	...	594716	121594	46658	131326	1836728	1457883	73165	159866	145814	1836728
1	00b00ae4-229d-455d-84f1-d6face4876b1	147002002/02	147002002/02	2	6	3	2	6	5	4	...	20	3	1	20	116	88	4	4	20	116
2	03003797-1fcd-4fcf-8dde-b2188e3fb1db	167070005/01/167070001	167070005/01/167070001	1	3	2	1	1	3	1	...	43	16	4	7	119	93	1	17	8	119
3	06650182-eeaa-4c6c-847c-f85ddaf5361b	087064009/03	087064009/03	4	1	2	3	1	2	1	...	59	9	2	6	114	106	2	1	5	114
4	08e82f06-46ee-4141-aa07-79a793a12b27	087001012/02	087001012/02	1	1	0	2	1	0	1	...	26	3	0	2	86	80	1	3	2	86

5 rows × 793 columns

Combining these takes just one simple line of code, asking to merge the small areas map file with the data, specifying that they should be merged based on the SA_GUID_2022 columns in each file - the columns containing the reference ID for each small area.

small_areas = small_areas.merge(small_areas_data, on='SA_GUID_2022')
small_areas.head()

	OBJECTID	SA_GUID_2016	SA_GUID_2022	SA_PUB2011	SA_PUB2016	SA_PUB2022	SA_GEOGID_2022	SA_CHANGE_CODE	SA_URBAN_AREA_FLAG	SA_URBAN_AREA_NAME	...	T15_1_2C	T15_1_3C	T15_1_GE4C	T15_1_NSC	T15_1_TC	T15_2_BB	T15_2_OIC	T15_2_NO	T15_2_NS	T15_2_T
0	1	4c07d11e-0a4f-851d-e053-ca3ca8c0ca7f	4c07d11e-0a4f-851d-e053-ca3ca8c0ca7f	017010016	017010016	017010016	A017010016	0	1	Carlow	...	37	3	2	7	114	94	2	10	8	114
1	2	4c07d11e-0a3a-851d-e053-ca3ca8c0ca7f	4c07d11e-0a3a-851d-e053-ca3ca8c0ca7f	017010046	017010046	017010046	A017010046	4	1	Carlow	...	47	2	2	5	120	107	2	4	7	120
2	3	4c07d11e-0a4e-851d-e053-ca3ca8c0ca7f	4c07d11e-0a4e-851d-e053-ca3ca8c0ca7f	017010037	017010037	017010037	A017010037	0	1	Carlow	...	30	7	0	4	132	106	3	17	6	132
3	4	4c07d11e-0a25-851d-e053-ca3ca8c0ca7f	4c07d11e-0a25-851d-e053-ca3ca8c0ca7f	017010005	017010005	017010005	A017010005	0	1	Carlow	...	30	13	7	31	144	111	1	3	29	144
4	5	4c07d11e-0a57-851d-e053-ca3ca8c0ca7f	4c07d11e-0a57-851d-e053-ca3ca8c0ca7f	017010036	017010036	017010036	A017010036	0	1	Carlow	...	27	3	2	3	87	69	2	14	2	87

5 rows × 821 columns

Done. I know it doesn’t look any different to the small_areas.head() result above - but check the size. Here it’s showing 5 rows by 821 columns; earlier it was 5 rows x 29 columns. It’s now added the 793 columns from the small_areas_data layer.

Before we move on to mapping any of this data, though, let’s check what map projection it’s in.

small_areas.crs

<Geographic 2D CRS: EPSG:4326>
Name: WGS 84
Axis Info [ellipsoidal]:
- Lat[north]: Geodetic latitude (degree)
- Lon[east]: Geodetic longitude (degree)
Area of Use:
- name: World.
- bounds: (-180.0, -90.0, 180.0, 90.0)
Datum: World Geodetic System 1984 ensemble
- Ellipsoid: WGS 84
- Prime Meridian: Greenwich

Better to have it in the Irish Transverse Mercator projection, so let’s reproject it:

small_areas = small_areas.to_crs(2157)
small_areas.crs

<Projected CRS: EPSG:2157>
Name: IRENET95 / Irish Transverse Mercator
Axis Info [cartesian]:
- E[east]: Easting (metre)
- N[north]: Northing (metre)
Area of Use:
- name: Ireland - onshore. United Kingdom (UK) - Northern Ireland (Ulster) - onshore.
- bounds: (-10.56, 51.39, -5.34, 55.43)
Coordinate Operation:
- name: Irish Transverse Mercator
- method: Transverse Mercator
Datum: IRENET95
- Ellipsoid: GRS 1980
- Prime Meridian: Greenwich

Done. We can now plot the CSO data on a map - though we have to choose which column we want to plot. Here’s a plot based on the column T1_1AGETT, which, if you check the census data glossary, contains the total population of all ages in each small area.

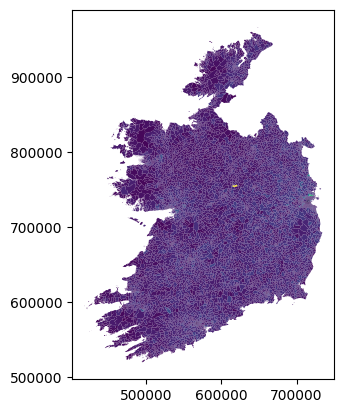

small_areas.plot(column='T1_1AGETT')

<Axes: >

Of course this is just the absolute most basic possible plot - we didn’t specify anything other than what data to show. We can, of course, exercise more control over the map, for example:

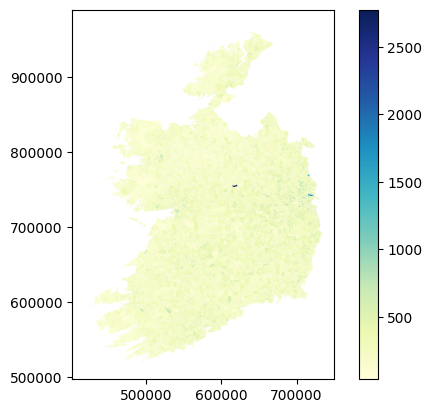

small_areas.plot(column='T1_1AGETT', cmap='YlGnBu', legend=True)

<Axes: >

Actually, this isn’t the most useful column to plot, because the small areas are literally drawn to be more or less even in terms of population. So there’s not much variation. But there’s plenty of other data in there. Let’s look at how many people in each area commute to work by bus - that’s column T11_1_BUW.

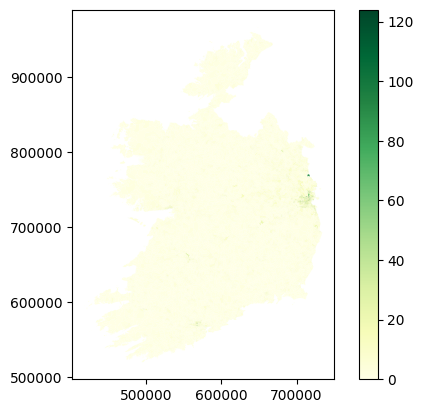

small_areas.plot(column='T11_1_BUW', cmap='YlGn', legend=True)

<Axes: >

Yikes, that doesn’t look like very many.

3. Attribute Calculations

The thing is though, with only small numbers in each area, it’s always going to be a fairly small number for this. It’s also perhaps a bit misleading to look at only commuting by bus - if we are interested in buses specifically, great, but what if we’re interested in sustainable transport options in general? What about trains, cycling, and walking? Plus, this is only the numbers for work - what about commuting to school or college?

The broader point I’m making here is that raw numbers can be useful, but often it’s much more useful to combine them. We can calculate new attribute columns based on the data we have. So, let’s do that by looking at sustainable transport in general. For this, we’ll need 8 columns of transport data:

• T11_1_FW On foot - Work

• T11_1_BIW Bicycle - Work

• T11_1_BUW Bus, minibus or coach - Work

• T11_1_TDLW Train, DART or LUAS - Work

• T11_1_FSCCC On foot - School, college or childcare

• T11_1_BISCCC Bicycle - School, college or childcare

• T11_1_BUSCCC Bus, minibus or coach - School, college or childcare

• T11_1_TDLSCCC Train, DART or LUAS - School, college or childcare

And rather than using raw numbers, let’s look at the percentage of people in each area who use sustainable transport options for commuting. For this, we need a column for population: that would be T11_1_TT.

The maths here is simple - we want to add the sustainable transport options, divide by the total, and multiply the result by 100 to make it a percentage - and we want to do that for every row, putting the result in a new column.

small_areas['sustainable_transport'] = ((
    small_areas['T11_1_FW'] +
    small_areas['T11_1_BIW'] +
    small_areas['T11_1_BUW'] +
    small_areas['T11_1_TDLW'] +
    small_areas['T11_1_FSCCC'] +
    small_areas['T11_1_BISCCC'] +
    small_areas['T11_1_BUSCCC'] +
    small_areas['T11_1_TDLSCCC']
)/small_areas['T11_1_TT'])*100

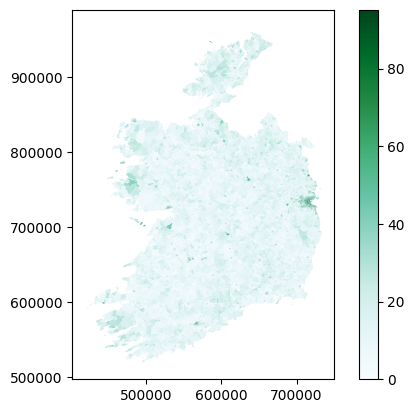

small_areas.plot(column='sustainable_transport', cmap='BuGn', legend=True)

<Axes: >

Doing this kind of geospatial analysis is really very straightforward - the mapping or processing isn’t tricky. The tricky part is deciding what you want to do, and figuring out if you have the right data to do it.

4. Aggregating

I’m not entirely convinced that map is hugely useful either. Not on a national scale, anyway. If we were looking at, say, Dublin, or Limerick, in isolation, trying to see if bus routes were working in certain places, then yes, doing this would be appropriate. But on a national scale, it’s probably more useful to just see the average numbers for particular places.

Again, this isn’t just about that map specifically, I’m using this as an example of a broader point that sometimes, we’re not necessarily interested in the full level of detail of a dataset, but rather want to aggregate the data for particular questions.

In this example, what we’d probably be most interested in, at a national level, is the proportion of people using sustainable transport options in urban areas - because of course, as we can see on the map above, rural areas really aren’t - there just aren’t any practical sustainable options right now for most rural areas.

We can do this by what’s called dissolving the data - meaning merging all features which share some attribute in common. To look at the sustainable transport options in each urban area, we will dissolve the data by the SA_URBAN_AREA_NAME column, which contains the names of the urban area each small area is part of - if they are part of one.

You can see in the head table above that the first couple of small areas in the list are part of Carlow town. The dissolve method will merge these all to a single feature - combining the polygon shapes for each small area in Carlow town. There will be a separate feature combining all the small areas in Limerick, and one for Galway, and one for Sligo…and so on. Each urban area named will get a single row combining all the data from all rows where that urban area was previously named.

Of course, that means there’ll only be one cell to contain population data, rather than one cell for each small area - and the same for every other column. So we also have to specify how this will be handled. Since we want the average for each urban area, we could take the mean of all the values for each urban area, and save the total in the relevant new row.

However, that would also take the mean for all the other data columns, which isn’t appropriate. But we also don’t need all of those other columns for this.

So, let’s create a separate GeoDataFrame with only the geometry polygons, urban area name, and sustainable transport percentages.

sa_sustrans = small_areas[['geometry', 'SA_URBAN_AREA_NAME', 'sustainable_transport']]
sa_sustrans.head()

	geometry	SA_URBAN_AREA_NAME	sustainable_transport
0	MULTIPOLYGON (((673146.546 677647.75, 673141.2...	Carlow	20.289855
1	MULTIPOLYGON (((673956.346 675276.804, 673941....	Carlow	21.250000
2	MULTIPOLYGON (((673720.644 676751.987, 673721....	Carlow	35.175879
3	MULTIPOLYGON (((671923.304 675704.149, 671917....	Carlow	35.579515
4	MULTIPOLYGON (((673711.843 677406.32, 673691.3...	Carlow	21.739130

In a more real example, we’d probably keep a few more columns, but this is fine to demonstrate the principle.

Now we can run the dissolve, and specify mean as the aggfunc - the aggregate function determining how to merge the data.

mean is only one option for aggfunc - you can also specify first, last, min, max, median, sum, or a custom function. But mean is what we need in this case.

sa_sustrans_urb = sa_sustrans.dissolve(by='SA_URBAN_AREA_NAME', aggfunc='mean')
sa_sustrans_urb

	geometry	sustainable_transport
SA_URBAN_AREA_NAME
Abbeydorney	POLYGON ((485341.032 623162.999, 485349.434 62...	15.950151
Abbeyfeale	POLYGON ((510917.378 625991.756, 510915.573 62...	23.899938
Abbeyknockmoy	POLYGON ((549725.461 742703.203, 549712.892 74...	17.870722
Abbeyleix	POLYGON ((643736.285 684505.592, 643805.947 68...	25.178486
Adamstown	POLYGON ((687189.78 627752.484, 687191.339 627...	21.463415
...	...	...
Whitegate	MULTIPOLYGON (((584028.934 563668.331, 584023....	16.129441
Wicklow	POLYGON ((730729.916 693028.64, 730725.348 693...	24.920175
Williamstown	POLYGON ((561884.081 769998.431, 561884.075 76...	14.615385
Woodford	POLYGON ((573160.609 701243.657, 573161.353 70...	9.090909
Youghal	POLYGON ((609570.554 575674.191, 609524.554 57...	19.458071

848 rows × 2 columns

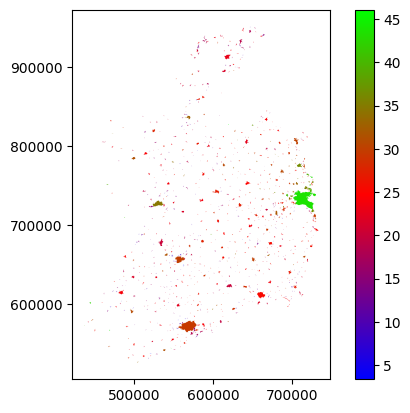

sa_sustrans_urb.plot(column='sustainable_transport', cmap='brg', legend=True)

<Axes: >

We could probably do better, especially if we start playing with the colour scale, but you can see the urban areas and variations between them. Dublin’s doing well - it should, it has the Luas and Dart as well as Dublin Bus. Everywhere else is, well, not great. Room for improvement.

In any case, this is not so much about this one map in particular, but more to demonstrate the general point of aggregating data - and that worked just fine, so hopefully you get that concept now.

5. Clipping

Now, the maps above are showing data for the entire State, but what if you just want to look at one place? It’s kinda hard to make out Limerick there. We could just zoom the map in on Limerick, but that seems a bit wasteful, since we’d still be processing all the data for everywhere else behind the scenes.

In the last example, we created a new dataframe which had only the columns we are interested in. Can we also do the same with rows?

Yes, absolutely. In fact, we did - dissolving by the urban area names column dropped all rows which aren’t named as part of an urban area.

Could we isolate all the rows for Limerick? Yes, we can. In fact, there’s two ways to do this. One would be simply extracting the rows which have Limerick as the urban area name.

sa_limerick = small_areas[small_areas['SA_URBAN_AREA_NAME']=='Limerick city and suburbs']
sa_limerick.head()

	OBJECTID	SA_GUID_2016	SA_GUID_2022	SA_PUB2011	SA_PUB2016	SA_PUB2022	SA_GEOGID_2022	SA_CHANGE_CODE	SA_URBAN_AREA_FLAG	SA_URBAN_AREA_NAME	...	T15_1_3C	T15_1_GE4C	T15_1_NSC	T15_1_TC	T15_2_BB	T15_2_OIC	T15_2_NO	T15_2_NS	T15_2_T	sustainable_transport
4985	4986	4c07d11d-f9a7-851d-e053-ca3ca8c0ca7f	4c07d11d-f9a7-851d-e053-ca3ca8c0ca7f	037009019	037009019	037009019	A037009019	0	1	Limerick city and suburbs	...	10	2	4	98	90	1	3	4	98	18.048780
4986	4987	4c07d11e-19db-851d-e053-ca3ca8c0ca7f	4c07d11e-19db-851d-e053-ca3ca8c0ca7f	037009007	037009007	037009007	A037009007	0	1	Limerick city and suburbs	...	9	1	11	118	89	1	16	12	118	15.094340
4987	4988	4c07d11e-19dc-851d-e053-ca3ca8c0ca7f	4c07d11e-19dc-851d-e053-ca3ca8c0ca7f	037009012	037009012	037009012	A037009012	0	1	Limerick city and suburbs	...	4	0	8	89	71	0	9	9	89	23.584906
4988	4989	4c07d11e-1a6a-851d-e053-ca3ca8c0ca7f	4c07d11e-1a6a-851d-e053-ca3ca8c0ca7f	037009016	037009016	037009016	A037009016	0	1	Limerick city and suburbs	...	4	0	23	135	107	2	2	24	135	7.333333
4989	4990	4c07d11e-19e6-851d-e053-ca3ca8c0ca7f	4c07d11e-19e6-851d-e053-ca3ca8c0ca7f	037009011	037009011	037009011	A037009011	0	1	Limerick city and suburbs	...	3	0	5	67	56	0	5	6	67	21.739130

5 rows × 822 columns

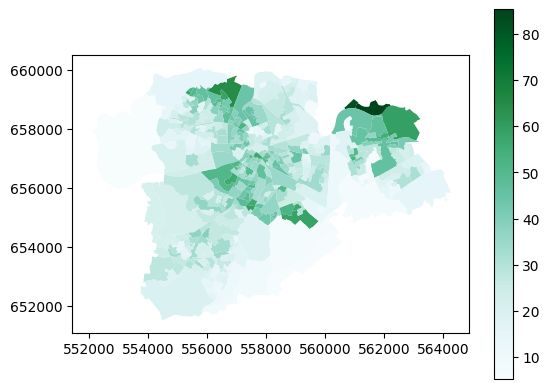

sa_limerick.plot(column='sustainable_transport', cmap='BuGn', legend=True)

<Axes: >

I did say above that plotting the data this way would be more useful looking at local areas - and yes, it is, isn’t it?

There is another way to isolate the data for Limerick, and that’s to clip it using a second layer with geometry.

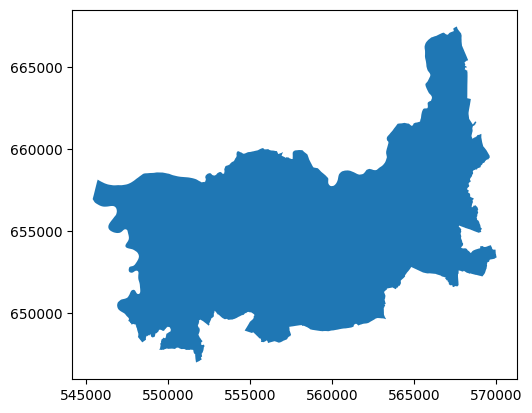

Luckily, I happen to have a file which contains the geometry of the Limerick Metropolitan area - and we can use that to clip the small areas data.

limerick_metropolitan = gpd.read_file('https://github.com/bamacgabhann/GY4006/raw/main/gy4006/sample_data/LimerickMetropolitan.gpkg')
limerick_metropolitan.plot()

<Axes: >

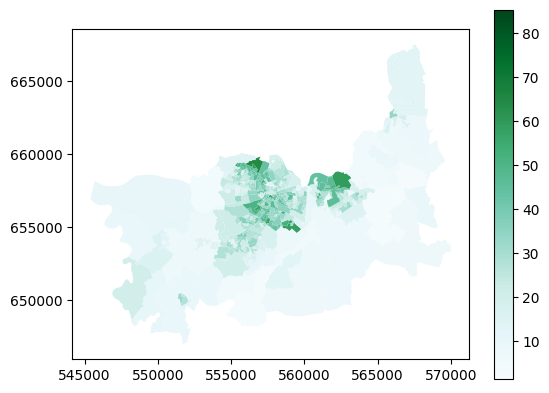

sa_clip_limerick = gpd.clip(small_areas, limerick_metropolitan)
sa_clip_limerick.plot(column='sustainable_transport', cmap='BuGn', legend=True)

<Axes: >

This covers more area than the previous - that’s because the Limerick Metropolitan area - the area covered by the Limerick City North, Limerick City West, and Limerick City East electoral areas - also includes a lot of more rural areas surrounding the city itself.

That’s not really the important point though - the takeaway here is that you can use the extent of one file to clip the contents of another, so that they both cover only the same area.

6. Buffering

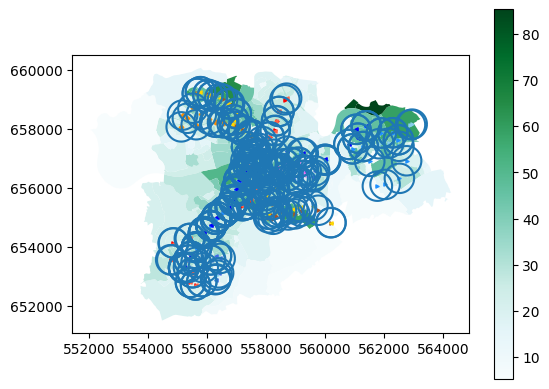

Buffering means defining an area within a certain distance of a feature. For example, you might want to look at how many people live within 500m of a bus stop - in which case you could create a 500m buffer around the bus stop. Or around multiple bus stops.

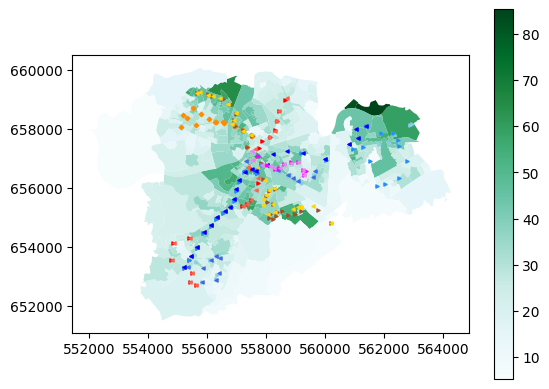

Why yes, I do happen to have maps of the bus stops in Limerick.

limerick_stops_301_to_raheen = gpd.read_file('https://github.com/bamacgabhann/GY4006/raw/main/gy4006/sample_data/Limerick_Bus_Stops.gpkg', layer='301_to_raheen')
limerick_stops_301_to_westbury = gpd.read_file('https://github.com/bamacgabhann/GY4006/raw/main/gy4006/sample_data/Limerick_Bus_Stops.gpkg', layer='301_to_westbury')
limerick_stops_302 = gpd.read_file('https://github.com/bamacgabhann/GY4006/raw/main/gy4006/sample_data/Limerick_Bus_Stops.gpkg', layer='302')
limerick_stops_303_to_omalley_park = gpd.read_file('https://github.com/bamacgabhann/GY4006/raw/main/gy4006/sample_data/Limerick_Bus_Stops.gpkg', layer='303_to_omalley_park')
limerick_stops_303_to_pineview = gpd.read_file('https://github.com/bamacgabhann/GY4006/raw/main/gy4006/sample_data/Limerick_Bus_Stops.gpkg', layer='303_to_pineview')
limerick_stops_304_to_raheen = gpd.read_file('https://github.com/bamacgabhann/GY4006/raw/main/gy4006/sample_data/Limerick_Bus_Stops.gpkg', layer='304_to_raheen')
limerick_stops_304_to_ul = gpd.read_file('https://github.com/bamacgabhann/GY4006/raw/main/gy4006/sample_data/Limerick_Bus_Stops.gpkg', layer='304_to_ul')
limerick_stops_304a_to_raheen = gpd.read_file('https://github.com/bamacgabhann/GY4006/raw/main/gy4006/sample_data/Limerick_Bus_Stops.gpkg', layer='304a_to_raheen')
limerick_stops_304a_to_ul = gpd.read_file('https://github.com/bamacgabhann/GY4006/raw/main/gy4006/sample_data/Limerick_Bus_Stops.gpkg', layer='304a_to_ul')
limerick_stops_305_to_liddy_st = gpd.read_file('https://github.com/bamacgabhann/GY4006/raw/main/gy4006/sample_data/Limerick_Bus_Stops.gpkg', layer='305_to_liddy_st')
limerick_stops_305_to_william_st = gpd.read_file('https://github.com/bamacgabhann/GY4006/raw/main/gy4006/sample_data/Limerick_Bus_Stops.gpkg', layer='305_to_william_st')

Separate map for each route - but we can plot all of these on one map.

import matplotlib.pyplot as plt

fig, ax = plt.subplots()
sa_limerick.plot(ax=ax, column='sustainable_transport', cmap='BuGn', legend=True)
limerick_stops_301_to_raheen.plot(ax=ax, marker='>', color='red', markersize=5)
limerick_stops_301_to_westbury.plot(ax=ax, marker='<', color='tomato', markersize=5)
limerick_stops_302.plot(ax=ax, marker='D', color='darkorange', markersize=5)
limerick_stops_303_to_omalley_park.plot(ax=ax, marker='>', color='sienna', markersize=5)
limerick_stops_303_to_pineview.plot(ax=ax, marker='<', color='gold', markersize=5)
limerick_stops_304_to_raheen.plot(ax=ax, marker='>', color='skyblue', markersize=5)
limerick_stops_304_to_ul.plot(ax=ax, marker='<', color='royalblue', markersize=5)
limerick_stops_304a_to_raheen.plot(ax=ax, marker='>', color='dodgerblue', markersize=5)
limerick_stops_304a_to_ul.plot(ax=ax, marker='<', color='blue', markersize=5)
limerick_stops_305_to_liddy_st.plot(ax=ax, marker='>', color='fuchsia', markersize=5)
limerick_stops_305_to_william_st.plot(ax=ax, marker='<', color='violet', markersize=5)
plt.show()

This is the first time we’ve put multiple layers on the same map - reasonably straightforward, I hope. Now, we can buffer the bus stop layers:

fig, ax = plt.subplots()
sa_limerick.plot(ax=ax, column='sustainable_transport', cmap='BuGn', legend=True)
limerick_stops_301_to_raheen.buffer(500).boundary.plot(ax=ax)
limerick_stops_301_to_westbury.buffer(500).boundary.plot(ax=ax)
limerick_stops_302.buffer(500).boundary.plot(ax=ax)
limerick_stops_303_to_omalley_park.buffer(500).boundary.plot(ax=ax)
limerick_stops_303_to_pineview.buffer(500).boundary.plot(ax=ax)
limerick_stops_304_to_raheen.buffer(500).boundary.plot(ax=ax)
limerick_stops_304_to_ul.buffer(500).boundary.plot(ax=ax)
limerick_stops_304a_to_raheen.buffer(500).boundary.plot(ax=ax)
limerick_stops_304a_to_ul.buffer(500).boundary.plot(ax=ax)
limerick_stops_305_to_liddy_st.buffer(500).boundary.plot(ax=ax)
limerick_stops_305_to_william_st.buffer(500).boundary.plot(ax=ax)
limerick_stops_301_to_raheen.plot(ax=ax, marker='>', color='red', markersize=5)
limerick_stops_301_to_westbury.plot(ax=ax, marker='<', color='tomato', markersize=5)
limerick_stops_302.plot(ax=ax, marker='D', color='darkorange', markersize=5)
limerick_stops_303_to_omalley_park.plot(ax=ax, marker='>', color='sienna', markersize=5)
limerick_stops_303_to_pineview.plot(ax=ax, marker='<', color='gold', markersize=5)
limerick_stops_304_to_raheen.plot(ax=ax, marker='>', color='skyblue', markersize=5)
limerick_stops_304_to_ul.plot(ax=ax, marker='<', color='royalblue', markersize=5)
limerick_stops_304a_to_raheen.plot(ax=ax, marker='>', color='dodgerblue', markersize=5)
limerick_stops_304a_to_ul.plot(ax=ax, marker='<', color='blue', markersize=5)
limerick_stops_305_to_liddy_st.plot(ax=ax, marker='>', color='fuchsia', markersize=5)
limerick_stops_305_to_william_st.plot(ax=ax, marker='<', color='violet', markersize=5)
plt.show()

Getting a bit messy in some places, but you can clearly see where isn’t within 500m of a bus stop.

Anyway, once again the real takaway isn’t this dataset in particular, it’s the concept of drawing buffers.

7. Intersecting

When we used the Limerick Metropolitan map to clip the small_areas map, that’s one way of using two datasets together. But what if we want to combine two datasets where they’re overlapping, and keep all the data from both datasets in the new combined layer?

This is called intersecting, and to demonstrate, let’s get a map of all the buildings in Limerick.

We’ll get it from OpenStreetMap. Buildings are fiddly, so in many places, this dataset wouldn’t be complete. I know it’s complete for Limerick, though, because I completed it.

For OpenStreetMap, in the data sources Notebook, I gave a link to GeoFabrik. I did that because if you’re using QGIS or ArcGIS Pro, that’s most likely what you’d use. However, in Python, we can use the package osmnx to get only the data we want from OpenStreetMap - instead of having to download all the data for the whole country.

if 'google.colab' in str(get_ipython()):
  !pip install osmnx
import osmnx as ox

place = "Limerick, Ireland"
tags = {"building": True}
lk_buildings = ox.features_from_place(place, tags)
lk_buildings = lk_buildings[lk_buildings.geom_type == 'Polygon']
lk_buildings = lk_buildings.to_crs(2157)
lk_buildings.plot()

<Axes: >

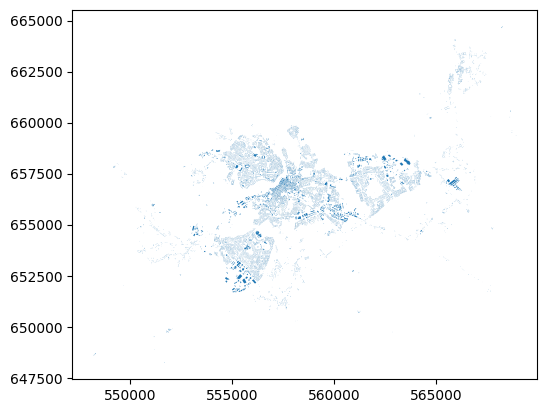

That’s all the buildings in Limerick, pulled from OpenStreetMap by the library osmnx. There’s some great examples of how to use osmnx by the package author Geoff Boeing.

Let’s intersect this with the small areas layer.

lk_buildings_sa = lk_buildings.overlay(small_areas, how='intersection')
lk_buildings_sa.plot(column="SA_GUID_2022")

<Axes: >

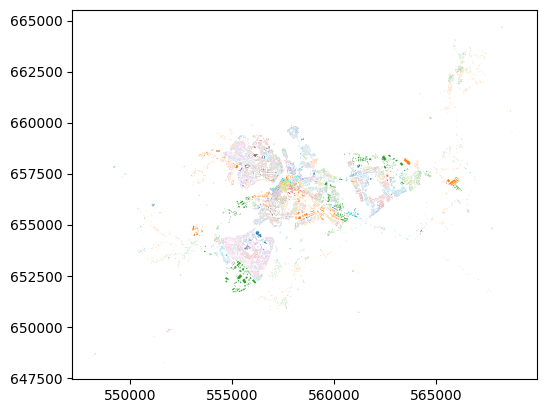

That’s all the buildings in Limerick, plotted by colour according to which small area they’re in.

They key point here is that what’s plotted on the map, i.e. the shapes of the buildings, is no different than the shapes of the buildings when we plotted straight from osmnx. But here, they have now inhereted the attributes of the small area that they’re in. That’s the power of intersection.

Summary

We have now been introduced to types of geospatial data, how it’s stored as Points, Lines, and Polygons with various attributes, in different file formats, and some of what you can do with the data. While the examples above use Python, the same kinds of geoprocessing are available in QGIS and ArcGIS Pro - so don’t worry about the code, it’s the concepts which are important.

Getting all the way to this point is a huge amount to cover in a short time, and please, don’t expect to have learned it all. This is just an introduction, so that you’ve seen something once. You can refer back to any of the Notebooks at any time, you don’t have to remember everything. I’m constantly looking up documentation to check how to do things again - I guarantee you I didn’t write all this straight from memory.

Much of this will take time to sink in - time, and using it. It doesn’t matter in the slightest if the “using it” part invoves constantly referring back to guides. If you go on to make more maps, and analyse more data - well, then you’ll get used to some of the tools for doing the particular things you use frequently. And if you’re not doing it frequently, well, being able to find the right guides and information to let you do what you want to do is all the matters.

---

GY4006 Notebooks in Colab:

2. Data Types

3. Vector Data

4. Attribute Data

5. Coordinate Reference Systems

6. Geospatial Data Files

7. Vector Geoprocessing

8. Introduction to Raster Data

9. Single-band Raster Data

10. Multi-band Raster Data: Passive Remote Sensing
